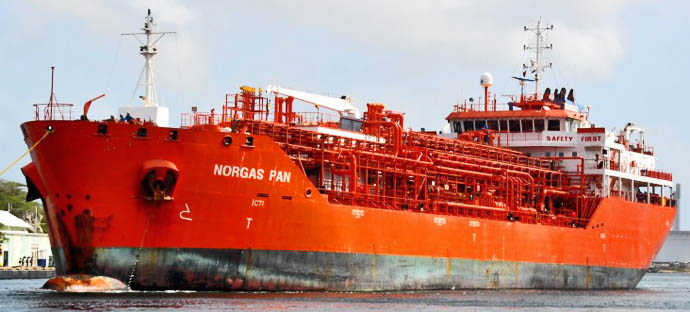

OSL40920090120001 NORGAS PAN. Foto Cees Bustraan.

2009 MT NORGAS PAN (OSL409200901)

Type:

Motorskip, LPG/kjemikalie tanker
motor ship, LPG/chemical tanker.

Off. nr.:

9378266

Flagg (flag):

SGP

Havn (port):

Singapore

Byggeår (year built):

2009/03

Bnr (Sno).:

WZL0501

Bygger (yard):

Taizhou Wuzhou Shipbuilding Industry Co. Ltd, Taizhou, China.

Eier (owner):

I. M. Skaugen Marine Services Pte. Ltd, Singapore.

Disponent (manager):

Norgas Carrier A/S, Oslo.

Klasse (Class).:

DnV +100 A5 Chemical tanker Type 2 Liquefied gas tanker
Type-2G ERS ESP IW +MC AUT Inert RI

Tonnasje (Tonnage):

10.003 tdw, 8.331 brt, 2.500 nrt.

Dimensjoner (size):

L: 109,43 m-B: 21,24 m-D: 11,30 m.

Lasthåndtering
(cargo handling):

4 lastetanker samlet kapasitet 9.700 m³.
Minimum temperatur -104 °C.
4 lossepumper med kapasitet 500 m³/time.

Kjølemaskineri
(Ref. machinery):

Navigasjonsutstyr:

Manøversystemer
(syst. for manouvering):

1 sidepropell forut.

Dekksmaskineri
(deck machinery):

Kommunikasjon (comm.):

Kallesignal (Call sign):

9VGF5

Fremdrift (propulsion):

2 dieselmotorer, Daihatsu 8-DKM-28. Hver 4-takt/enkltv., 8–
sylinder, syl. dim.: 280 x 390 mm. Samlet 5.000 BHK koblet til
et GWS5259 reduksjonsgear og 2 faste propeller. Bygget av
Shaanxi Diesel Engine Factory, Xingping, China.

Fart/forbr.(speed/cons.):

13,5 knop

Hjelpemaskineri (aux):

3 Caterpillar 3508 B DITA dieselgen; hver 910 kW.
1 Caterpillar 6 CTA8 3-D (M) dieselgen (Nød). ? kW.

Tot. el. kraft (el. power):

2.730kW/440-220VAC/60Hz.

Kjeler (boilers):

2 QXC-250-L Thermal oil heater, oil fired. Arbeidstrykk 7,0 bar.
2 SRHQ-300 Thermal oil heater, exhaust gas heated.
Arbeidstrykk 7,0 bar.

Bemanning (crew):

Historikk:

2005 Kontrahert 15/09.
2006 Kjølstrukket 06/08.
Bygget som NORGAS PAN av Taizhou Wuzhou Shipbuilding Industry Co. Ltd, Taizhou, China for I. M. Skaugen Marine Services Pte. Ltd (Norgas Carrier A/S, Oslo), Singapore.
2007 Sjøsatt 25/12.
2009 Ferdigstilt 10/03.
2012 Norgas Pte. Ltd, Singapore ble managers 01/01.
2015 Overtatt av Taizhou Hull No WZL 0501 L.L.C. (c/o Lauritzen Kosan A/S, Hellerup, Danmark), Singapore.
2017 Teekay Multigas Pool L.L.C., Nassau, Bahamas ble managers 18/11. Omdøpt til PAN SPIRIT.
2019 Lauritzen Kosan A/S, Hellerup, Danmark ble managers i mars. Fremdeles registrert i Nassau.
2022 Fremdeles i drift 24/07.

History in English:

2005 Contracted 15/09.
2006 Keel laid 15/09.
Built as NORGAS PAN by Taizhou Wuzhou Shipbuilding Industry Co. Ltd, Taizhou, China for I. M. Skaugen Marine Services Pte. Ltd (Norgas Carrier A/S, Oslo), Singapore.
2007 Launched 25/12.
2009 Completed 10/03.
2012 Norgas Pte. Ltd, Singapore became managers 01/01.
2015 Taken over by Taizhou Hull No WZL 0501 L.L.C. (c/o Lauritzen Kosan A/S, Hellerup, Denmark), Singapore.
2017 Teekay Multigas Pool L.L.C., Nassau, Bahamas became managers 18/11. Renamed PAN SPIRIT.
2019 Lauritzen Kosan A/S, Hellerup, Denmark became managers in March. Still registered in Nassau.
2022 Still in service 24/07.
