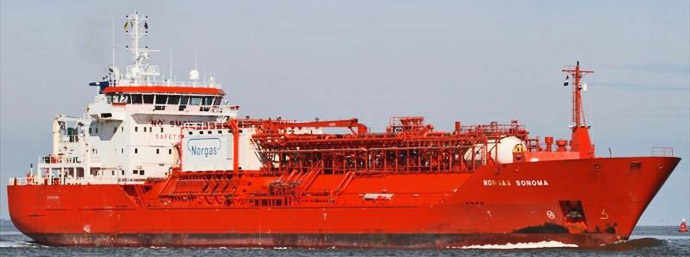

OSL40920030120001 NORGAS SONOMA. Foto: Stefan Kruber.

2003 MT NORGAS SONOMA (OSL409200301)

Type:

Motorskip, LPG tanker
motor ship, LPG carrier.

Off. nr.:

9240134

Flagg (flag):

CS

Havn (port):

Hong Kong

Byggeår (year built):

2003/01

Bnr (Sno).:

430

Bygger (yard):

Hudong-Zhonghua Shipbuilding (Group) Co. Ltd, Shanghai,
China.

Eier (owner):

Somargas Limited, Hong Kong, China.

Disponent (manager):

Norgas Carrier A/S, Oslo.

Klasse (Class).:

DnV +100 A5 Liquefied gas tanker Type-2G With independent
Tanks ERS IW NLS +MC AUT CM-PS

Tonnasje (Tonnage):

9.352 tdw, 8.720 brt, 2.617 nrt.

Dimensjoner (size):

L: 124,90 m-B: 20,10 m-D: 11,50 m.

Lasthåndtering
(cargo handling):

2 lastetanker samlet kapasitet 8.461 m³.
Maks tanktrykk 7,0 bar.
Minimum temperatur -104 °C.
1 Svanehøj deepweel lossepumper med kapasitet 640 m³/time.
1 Svanehøj booster pumpe med kapasitet 380 m³/time.

Kjølemaskineri
(Ref. machinery):

2 refrigerant compressors. Cascade /direct cycle.
1 indirect ethylene vaporiser: 1.000 m³/h at 15°C sea water
temp.
1 indirect thermal oil heated LPG-heater / vaporiser: 60 t/h
propane -42°C to 0°C, vapour 2 t/h.
1 direct sea water heated LPG-heater / vaporiser: 200 t/h
propane -42°C to 0°C at 15°C sea water, vapour 2t/h.

Navigasjonsutstyr:

Manøversystemer
(syst. for manouvering):

1 Brunvoll FU-63-LTC-1550 sidepropell forut.

Dekksmaskineri
(deck machinery):

Kommunikasjon (comm.):

Kallesignal (Call sign):

VRYF9 / 9V8457 / C6DS8

Fremdrift (propulsion):

1 dieselmotor, MAN-B&W 6-L48/60. 4-takt/enkltv., 6–sylinder,
syl. dim.: 480 x 600 mm. 8.565 BHK koblet til 8 HSUSI-1020
reduksjonsgear og en vribar propell. Bygget av Hudong Heavy
Machinery Co. Ltd, Shanghai, China.

Fart/forbr.(speed/cons.):

16,5 knop ved et forbruk på 27,0 t/døgn.
Bunkerskapasitet 1.300.

Hjelpemaskineri (aux):

4 MAN D 2842 LE 301 dieselgen; hver 600 kW.
1 akselgen. 1.700 kW.
1 MAN D 2866 E dieselgen (Nød). 145 kW.

Tot. el. kraft (el. power):

4.100kW/440-220VAC/60Hz.

Kjeler (boilers):

1 Thermal oil heater, oil fired, S/25-H-I-13. Heteflate 56,5 m².
Arbeidstrykk 10,0 bar. Bygget av Aalborg Industries A/S,
Aalborg, Danmark.
1 Thermal oil heater exhaust gas heated, EXV54-31-570-
900. Heteflate 90,0 m². Arbeidstrykk 10,0 bar. Bygget av
Aalborg Industries A/S, Aalborg, Danmark.

Bemanning (crew):

Historikk:

2000 Kontrahert 16/06.
2001 Kjølstrukket 22/09.
Bygget som NORGAS SONOMA av Hudong-Zhonghua Shipbuilding (Group) Co. Ltd, Shanghai, China for Somargas Limited (Norgas Carrier A/S, Oslo), Hong Kong, China. Sjøsatt 21/12.
2003 Ferdigstilt 06/01.
2011 Solgt 10/03 til Somargas II Pte. Ltd (Norgas Pte. Ltd, Singapore), Singapore.
2017 Teekay Multigas Pool L.L.C., Nassau, Bahamas ble managers 20/12. Omdøpt til SONOMA SPIRIT.
2018 Solgt 26/01 to Sonoma L.L.C. (Teekay Multigas Pool L.L.C.), Nassau.
2019 Lauritzen Kosan A/S, Hellerup, Danmark ble managers i mars. Fremdeles registrert i Nassau.
2022 Fremdeles i drift 18/07.

History in English:

2000 Contracted 16/06.
2001 Keel laid 22/09.
Built as LPG/C NORGAS SONOMA by Hudong-Zhonghua Shipbuilding (Group) Co. Ltd, Shanghai, China for Somargas Limited (Norgas Carrier A/S, Oslo), Hong Kong, China. Launched 21/12.
2003 Completed 06/01.
2011 Sold 01/03 to Somargas II Pte. Ltd (Norgas Pte. Ltd, Singapore), Singapore.
2017 Teekay Multigas Pool L.L.C., Nassau, Bahamas became managers 20/12. Renamed SONOMA SPIRIT.
2018 Sold 26/01 to Sonoma L.L.C. (Teekay Multigas Pool L.L.C.), Nassau.
2019 Lauritzen Kosan A/S, Hellerup, Denmark became managers in March. Still registered in Nassau.
2022 Still in service 18/07.
